similar DIN 2642, G 32/ 42,4 x 2,6 St 35.8 I
similar DIN 2642, G 32/ 42,4 x 2,6 St 35.8 I

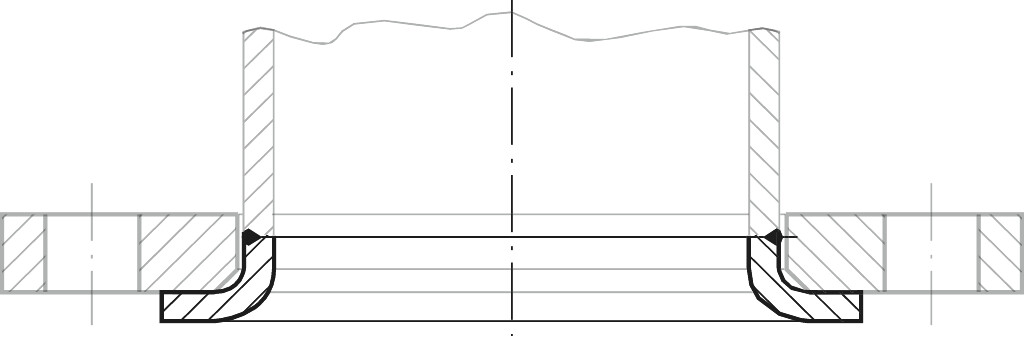

DIN 2642 similar to flange PN 10 St 35.8I

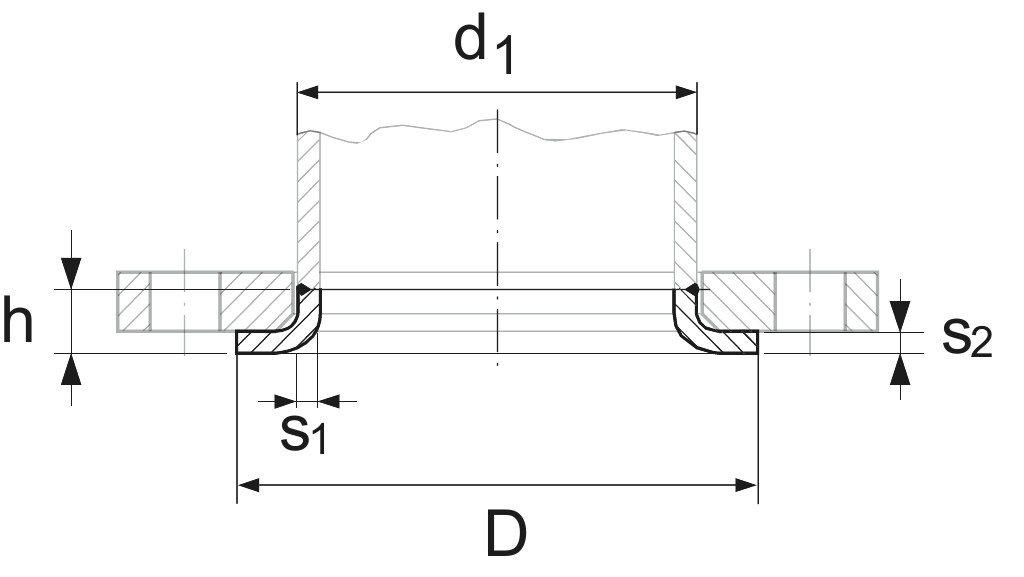

Technical data
| Height (h): | 15 |
|---|---|
| Material: | St 35.8 I |
| Nominal Pressure ( PN ): | 10 |
| Nominal width: | 32 |
| Nominal width (NW): | 32 |
| Outside diameter (D): | 78 |
| Thickness (s1): | 2.6 |
| Thickness 2 (s2): | 3.5 |
| Tube external dimension (d1): | 42.4 |
Further information
TBD
Description
Art.-No.
Availability
207354
available
€40.71
/ 1 pcs
Content:
1 pcs
