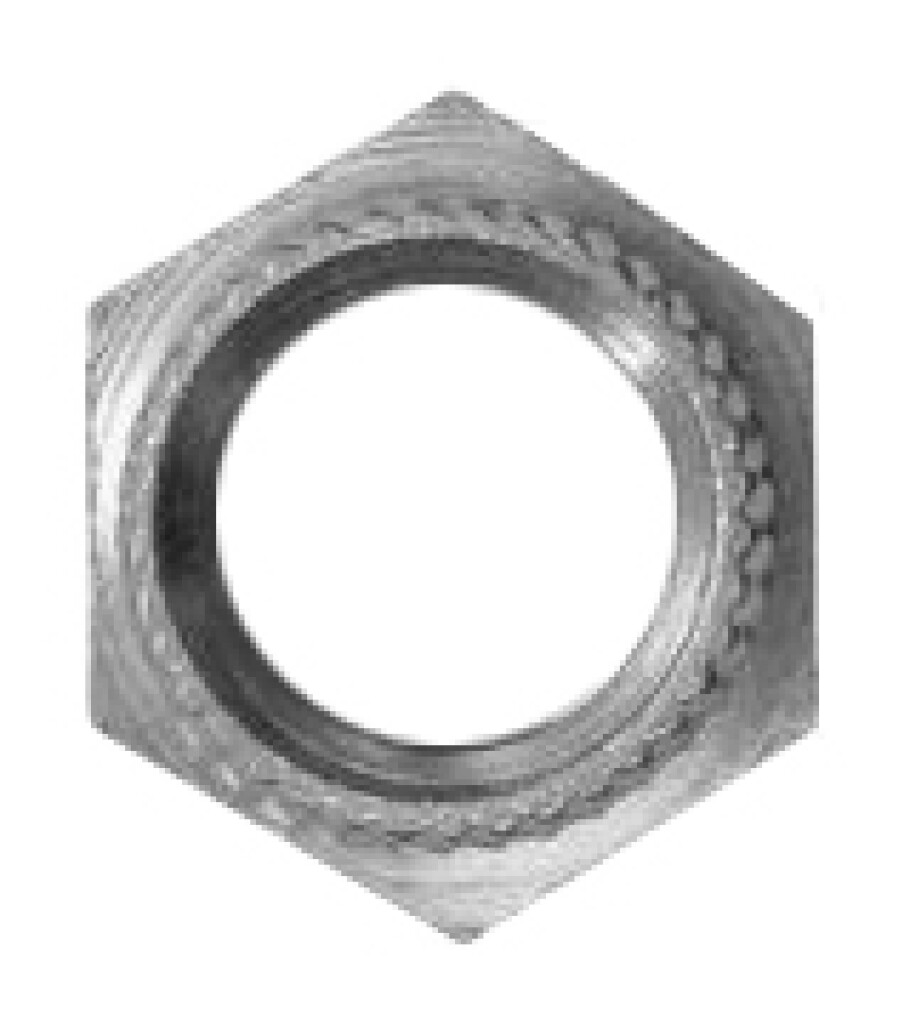

insert nuts 1.0718 M 3 zinc-plated AF 5,5 x 3 HH 0,9 mm
_sw.jpg.jpg "insert nuts 1.0718 M 3 zinc-plated AF 5,5 x 3 HH 0,9 mm")
insert nuts 1.0718 M 3 zinc-plated AF 5,5 x 3 HH 0,9 mm
insert nuts material 1.0718 zinc-plated

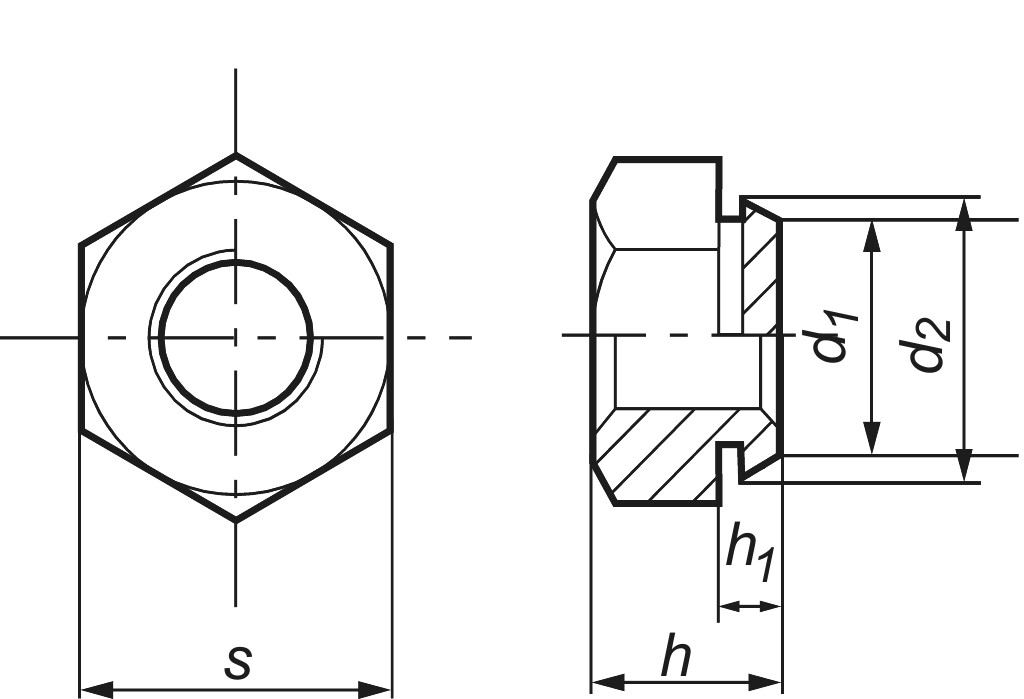

Technical data
| Collar diameter (d2): | 4.7 |
|---|---|
| Collar heigth (h1): | 0.9 |
| Material: | 1.0718 |
| Minimum-material thickness: | 1 |
| Surface: | galvanised |
| Thread (d): | M 3 |
| Total heigth (h): | 3 |
| Wrench size (s): | 5,5 |
