Fischer scaffold anchoring S 14 ROE 185 no 52164
Fischer scaffold anchoring S 14 ROE 185 no 52164

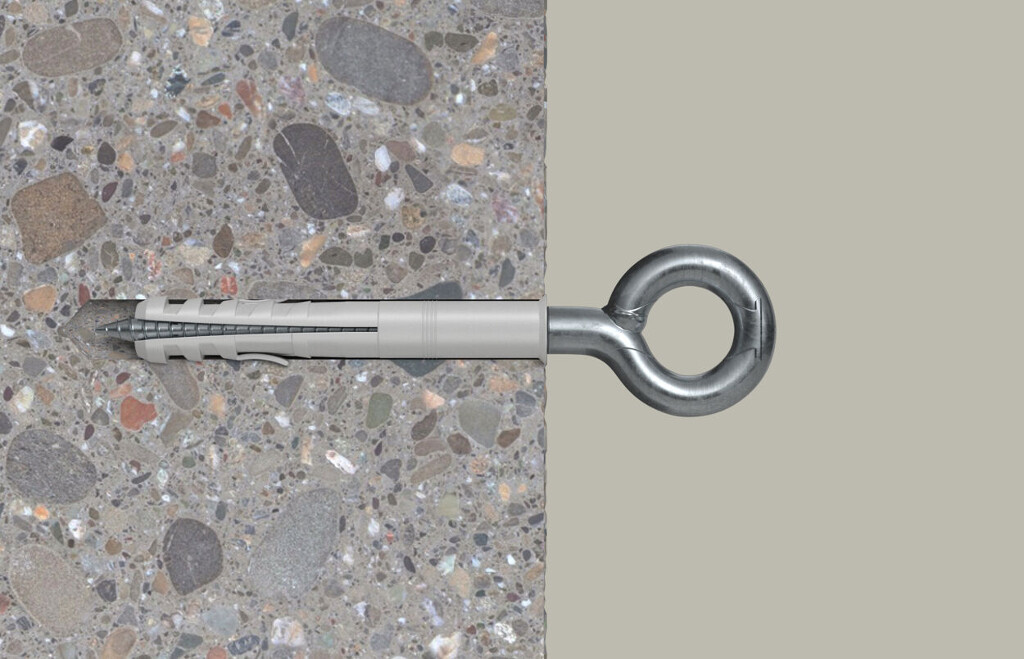

The fischer plug S 14 ROE is an expansion plug made of high-quality nylon for holding the fischer eye bolt GS 12. The expanding wings prevent rotation and make assembly easier. When driving in the eye bolt, the expansion zone expands and anchor itself securely in the building material. For installations close to the edge, turn the plug so that the expansion force acts parallel to the edge.

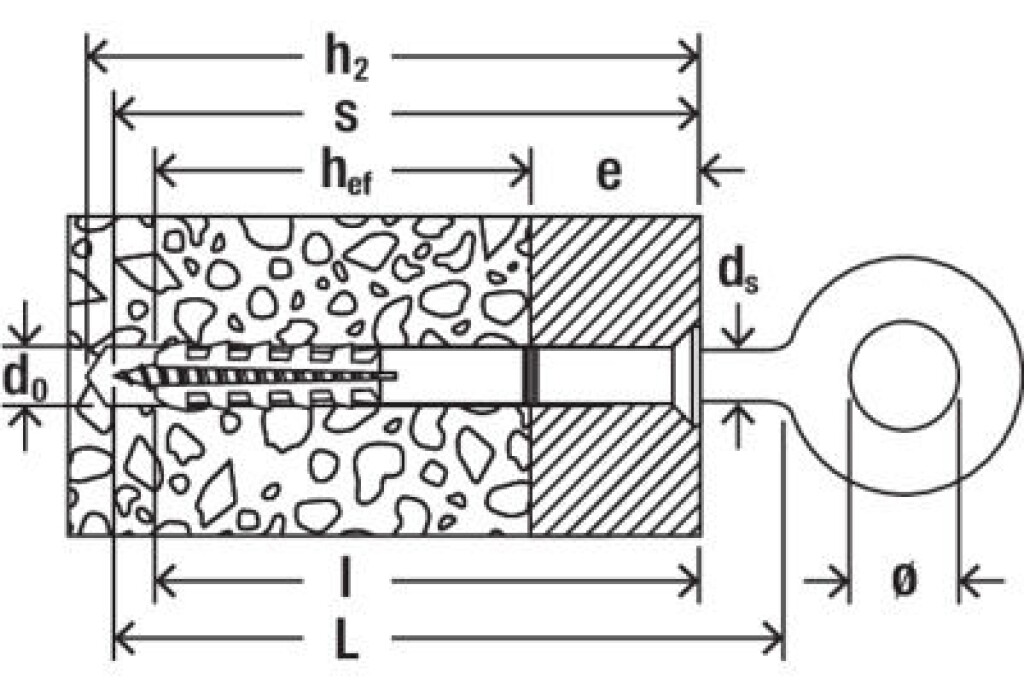

Technical data
| Anchorage depth: | 70 |
|---|---|
| Anchor length: | 185 |
| Drill diameter: | 14 |
| EAN Nr.: | 4006209521649 |
| Manufacturer No. : | 052164 |
| Material: | Nylon |
| Max. effective length: | 110 |
| Min. Screw-in depth: | 190 |
| Type: | S 14 ROE 185 |
