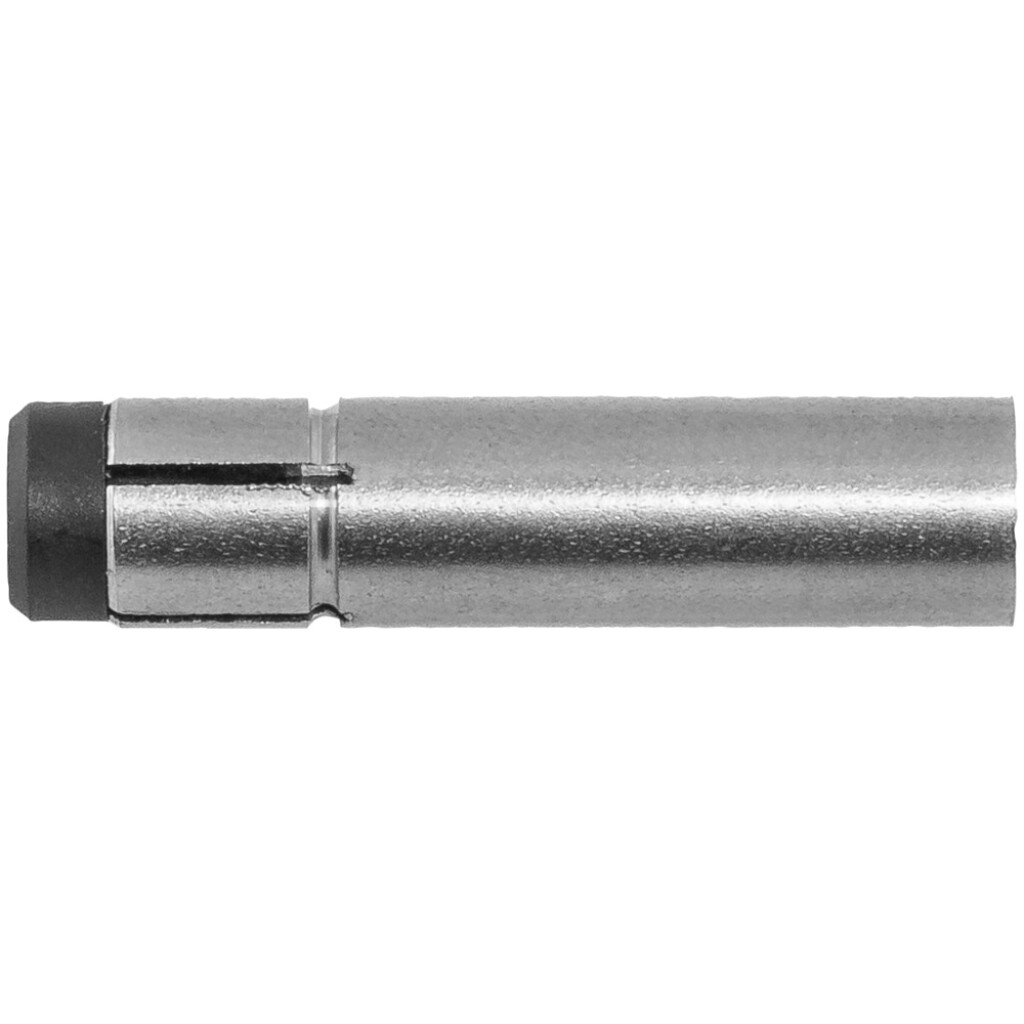

Fischer ZYKON FZEA II 10 x 40 M 8 no 47303
Fischer ZYKON FZEA II 10 x 40 M 8 no 47303
The fischer ZYKON Hammerset anchor FZEA II is an internal threaded anchor made of zinc-plated steel. The special drill bit FZUB is used to create the undercut drill hole in a single work step. The undercut anchor is set in the time-saving through-type installation. The expansion sleeves are driven in with the setting tool FZED Plus by driving in the internal expansion pin above the cone. This fills the undercut drill hole with a positive fit. The fischer ZYKON Hammerset anchor FZEA II is suitable for single-point fixings of pipelines, suspended ceilings, and sprinkler systems within internal areas in cracked concrete.
Technical data
| Internal thread (d1): | M 8 |
|---|---|
| Manufacturer No. : | 047303 |
| Material: | Steel |
| Screw-in depth: | 11 - 17 |
| Surface: | galvanised |
| Type: | FZEA II 10 x 40 M 8 |
| suitable for: | Bohrer FZUB 10 x 40, Setzwerkzeug FZED 10 plus |
Graduated prices
| Quantity | Price |
|---|---|
| To 49 | €147.74 / 100 pcs |
| To 99 | €118.19 / 100 pcs |
| To 199 | €110.81 / 100 pcs |
| To 299 | €103.42 / 100 pcs |
| To 499 | €96.03 / 100 pcs |
| From 500 | €88.64 / 100 pcs |
Further information
TBD
Description
Art.-No.
Availability
154657
available
€147.74
/ 100 pcs
Content:
1 pcs
(€147.74* / 100 pcs)
