Fischer ZYKON FZA 18 x 100 M 12D/20 A4 no 60672

Select Material

Steel

stainless steel

Select Type

FZA 12 x 50 M 8 D/10

FZA 12 x 50 M 8 D/10 R

FZA 12 x 60 M 8 D/10

FZA 12 x 60 M 8 D/10 R

FZA 12 x 80 M 8 D/30

FZA 12 x 80 M 8 D/30 R

FZA 14 x 80 M10 D/20

FZA 14 x 80 M10 D/20 R

FZA 14 x 100 M10 D/40

FZA 14 x 100 M10 D/40 R

FZA 18 x 100 M12 D/20

FZA 18 x 100 M12 D/20 R

FZA 18 x 130 M12 D/50

FZA 18 x 130 M12 D/50 R

FZA 22 x 125 M16 D/25

FZA 22 x 125 M16 D/25 R

Fischer ZYKON FZA 18 x 100 M 12D/20 A4 no 60672

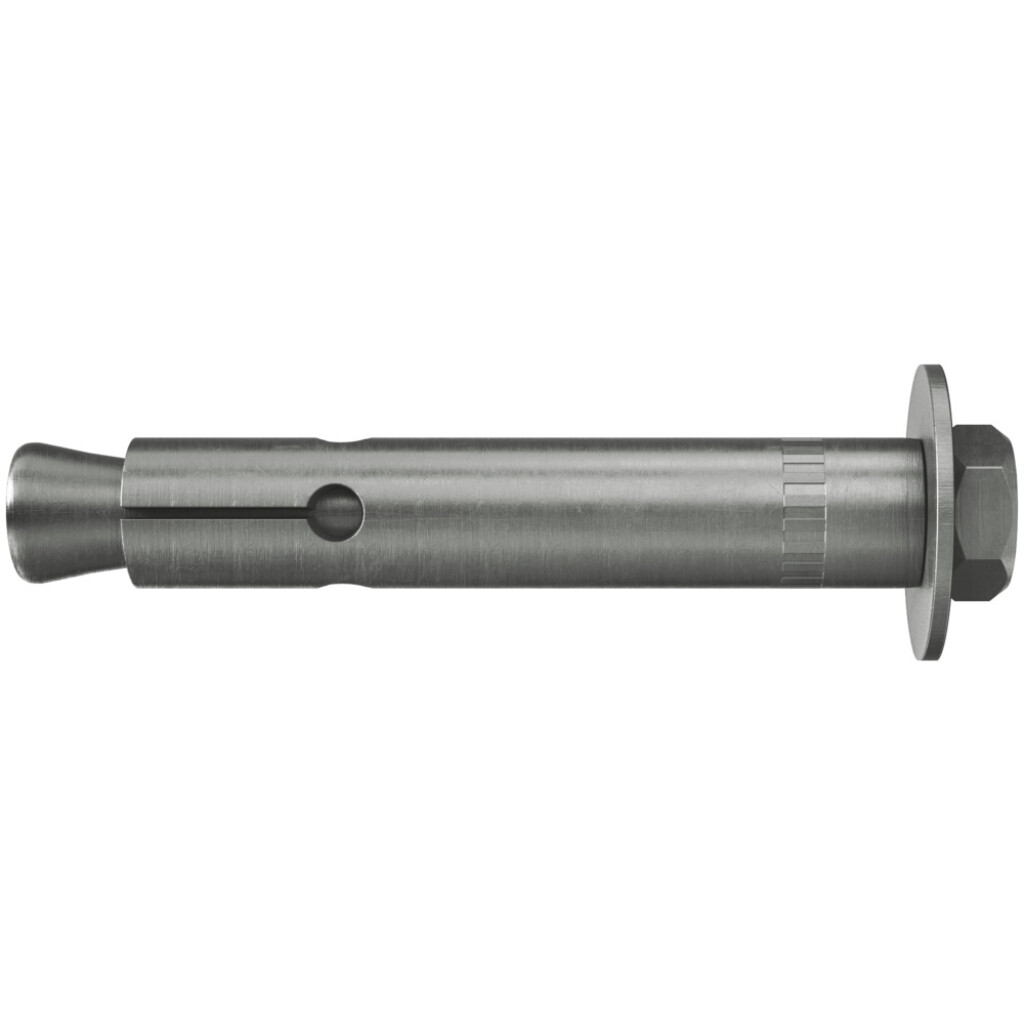

The fischer ZYKON push-through anchor FZA-D is an anchor made of stainless steel. The special drill bit FZUB is used to create the undercut drill hole in a single work step. The undercut anchor is set in the through-type installation. The expansion sleeve is driven above the cone with the setting tool FZE Plus and fills the undercut drill hole with a positive fit. The fischer ZYKON push-through anchor FZA-D is ideal for fixing faÃ§ades, railings, and steel constructions within external areas in cracked concrete.

Technical data

Manufacturer No. :	060672
Material:	stainless steel
Max. effective length:	20
Thread (d):	M 12
Type:	FZA 18 x 100 M12 D/20 R
Wrench size (s):	19
suitable for:	Bohrer FZUB 18 x 100, Setzwerkzeug FZE 18 plus

Graduated prices

Quantity	Price
To 49	€4,822.05 / 100 pcs
To 99	€3,857.64 / 100 pcs
To 199	€3,616.54 / 100 pcs
To 299	€3,375.43 / 100 pcs
To 499	€3,134.33 / 100 pcs
From 500	€2,893.23 / 100 pcs

Further information

TBD

Description

Art.-No.

Availability

Fischer ZYKON FZA 18 x 100 M 12D/20 A4 no 60672

179572

available on request

€4,822.05
/ 100 pcs

Content: 1 pcs (€4,822.05* / 100 pcs)
