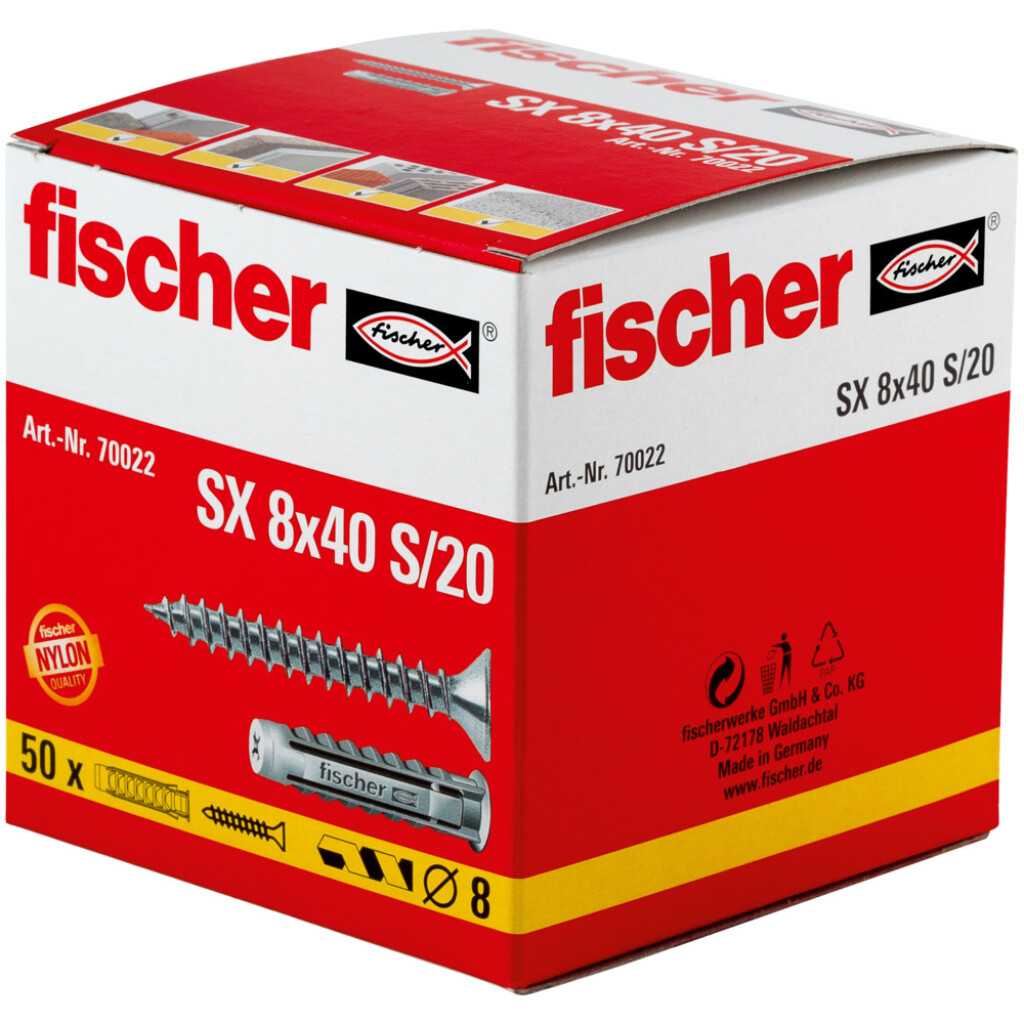

FISCHER plug SX 8 S/20 No 70022
FISCHER
FISCHER plug SX 8 S/20 No 70022

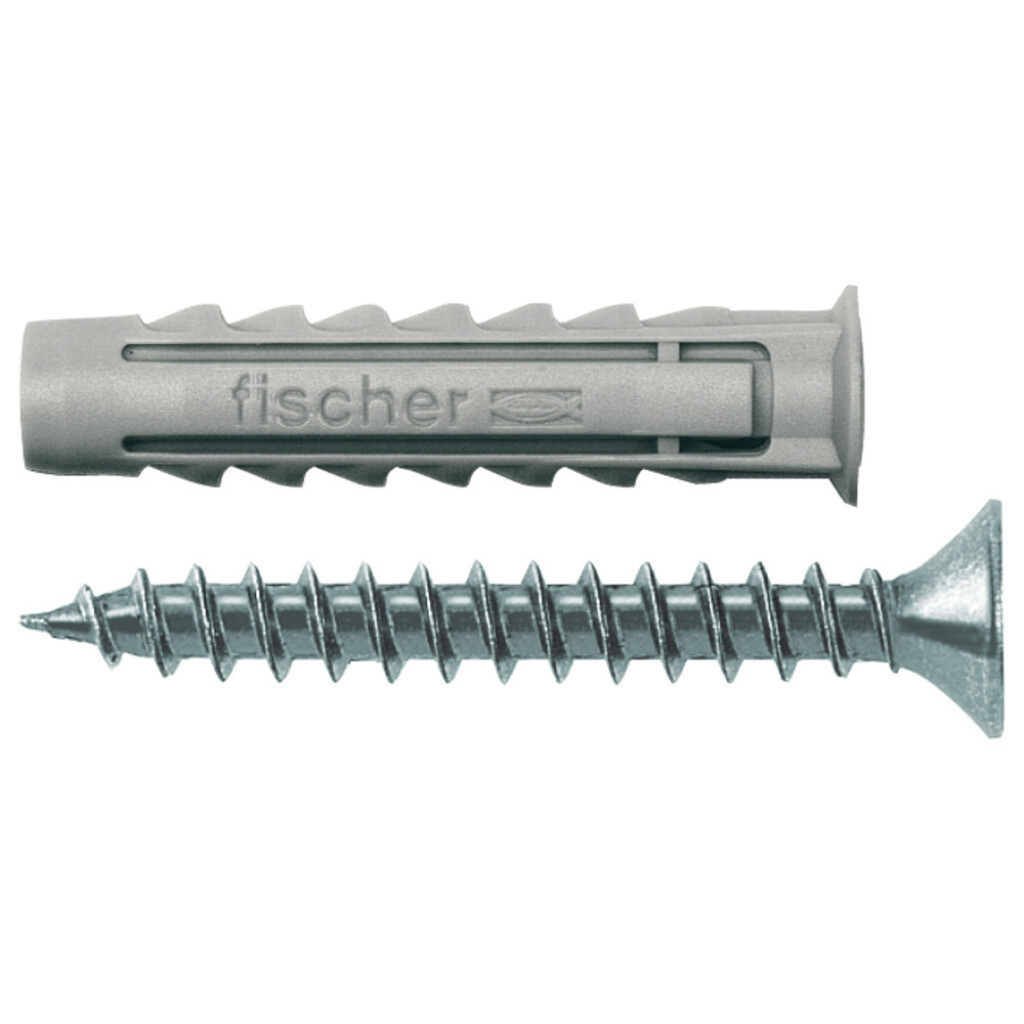

Due to four-way expansion, the fischer expansion plug SX optimally transfers forces into the building material. The high-quality nylon used in production and typical expansion guarantee a secure, permanent connection. The edge on the head of the fixing prevents the fixing from slipping into the drill hole. The screws supplied are ideally suited to the fischer expansion plug SX. This guarantees perfect hold.
Technical data
| Anchorage depth: | 40 |
|---|---|
| Anchor length: | 40 |
| Colour: | grey |
| Drill diameter: | 8 |
| Drive type: | PZ2 |
| EAN Nr.: | 4006209700228 |
| Manufacturer No. : | 070022 |
| Material: | Nylon |
| Max. effective length: | 15 |
| Min. Screw-in depth: | 45 |
| Min. drill hole depth: | 60 |
| Screw for anchor: | 4,5 - 6 |
| Type: | SX 8 x 40 S/20 |
