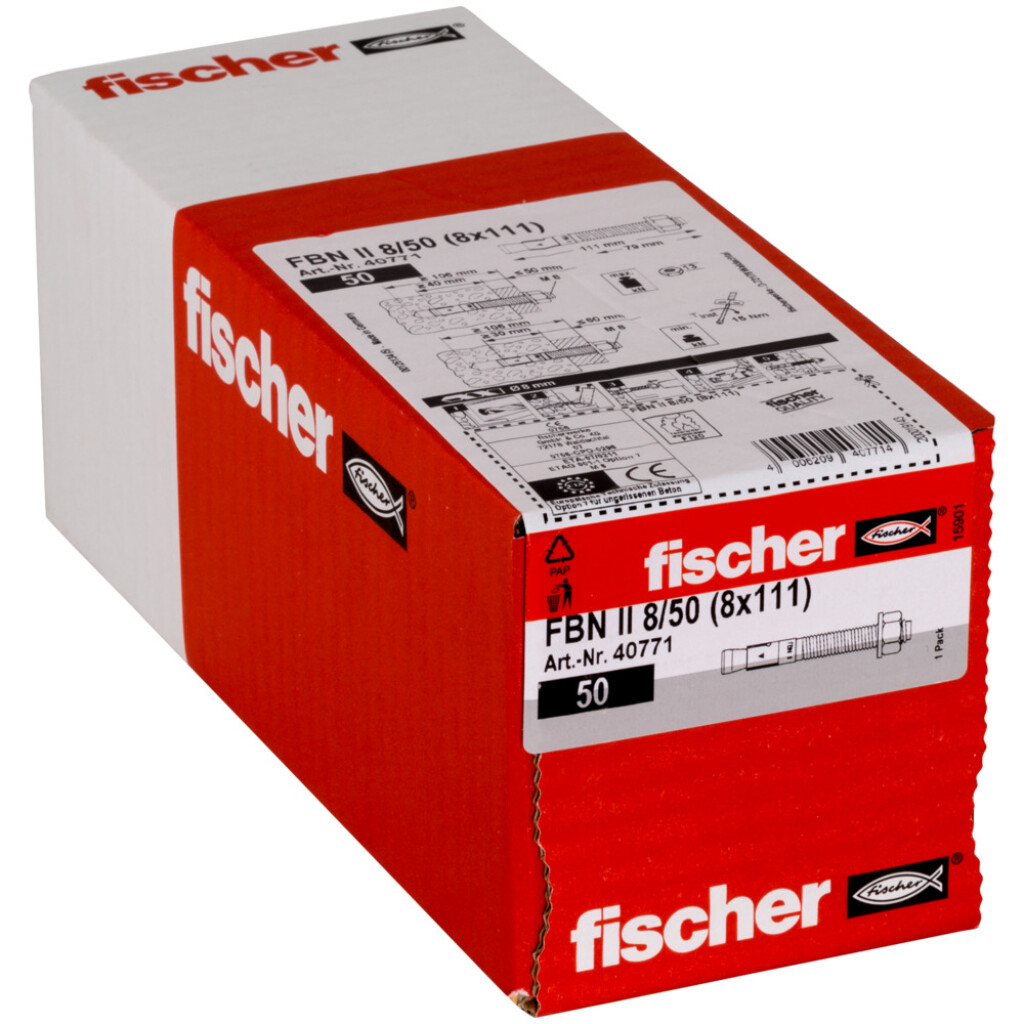

FISCHER bolt anchor FBN II 8/ 50 (8x111)zinc plated no 40771
FISCHER bolt anchor FBN II 8/ 50 (8x111)zinc plated no 40771
The fischer bolt anchor FBN II is a steel anchor for cost-effective fixings in non-cracked concrete. Due to the long thread and the two anchorage depths, the fischer bolt anchor FBN II can be used in a particularly flexible manner. The bolt anchor is also suitable for stand-off installation as well as pre-positioned and in push-through installation. The zinc-plated steel version of the bolt anchor is suitable for fixing railings, cable trays, and consoles in internal areas.
Technical data
| Anchor length: | 110 |
|---|---|
| Drill diameter: | 8 |
| Manufacturer No. : | 040771 |
| Material: | Steel |
| Min. drill hole depth: | 106 |
| Surface: | galvanised |
| Type: | FBN II 8/50 |
| Wrench size (s): | 13 |
Graduated prices
| Quantity | Price |
|---|---|
| To 99 | €158.03 / 100 pcs |
| To 199 | €148.16 / 100 pcs |
| To 299 | €138.28 / 100 pcs |
| To 499 | €128.40 / 100 pcs |
| From 500 | €118.52 / 100 pcs |
Further information
TBD
Description
Art.-No.
Availability
158204
available
€158.03
/ 100 pcs
Content:
1 pcs
(€158.03* / 100 pcs)
