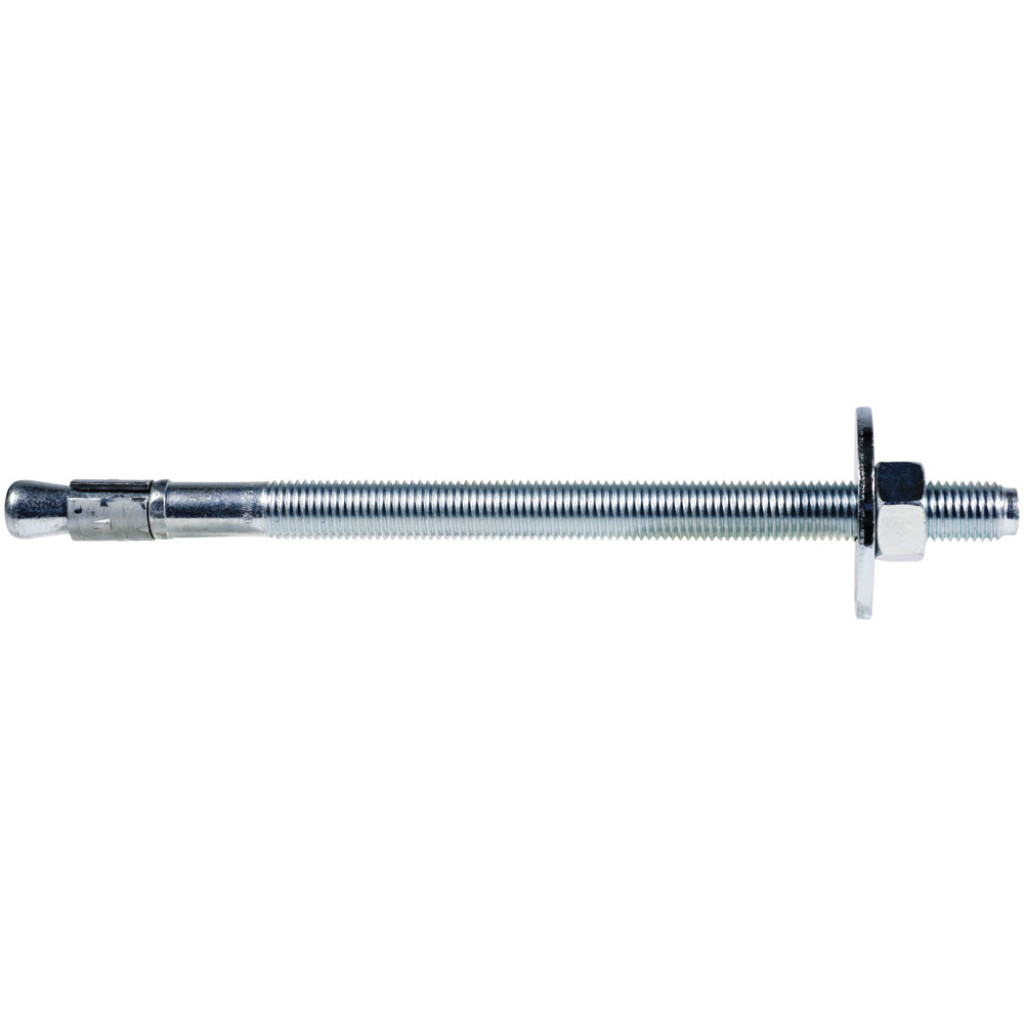

FISCHER bolt anchor FBN II 12/ 80 GS (12x176) zinc plated no 45578
FISCHER
FISCHER bolt anchor FBN II 12/ 80 GS (12x176) zinc plated no 45578
The fischer bolt anchor FBN II with large washer is a steel anchor for cost-effective fixings in non-cracked concrete. Due to the long thread and the two anchorage depths, the fischer bolt anchor FBN II can be used in a particularly flexible manner. The bolt anchor is also suitable for stand-off installation as well as pre-positioned and in push-through installation. The steel anchor, made of zinc-plated steel and with a large pre-mounted washer, is recommended for fixing bearing beams and sills, as well as other timber constructions.
Technical data
| Anchor length: | 174 |
|---|---|
| Clamping strength: | 80 |
| Drill diameter: | 12 |
| EAN Nr.: | 4006209455784 |
| Manufacturer No. : | 045578 |
| Material: | Steel |
| Min. drill hole depth: | 165 |
| Surface: | galvanised |
| Type: | FBN II 12/80 GS |
| Wrench size (s): | 19 |
