FISCHER Nail anchor FNA II 6x30M8/5 no 44114
FISCHER
FISCHER Nail anchor FNA II 6x30M8/5 no 44114

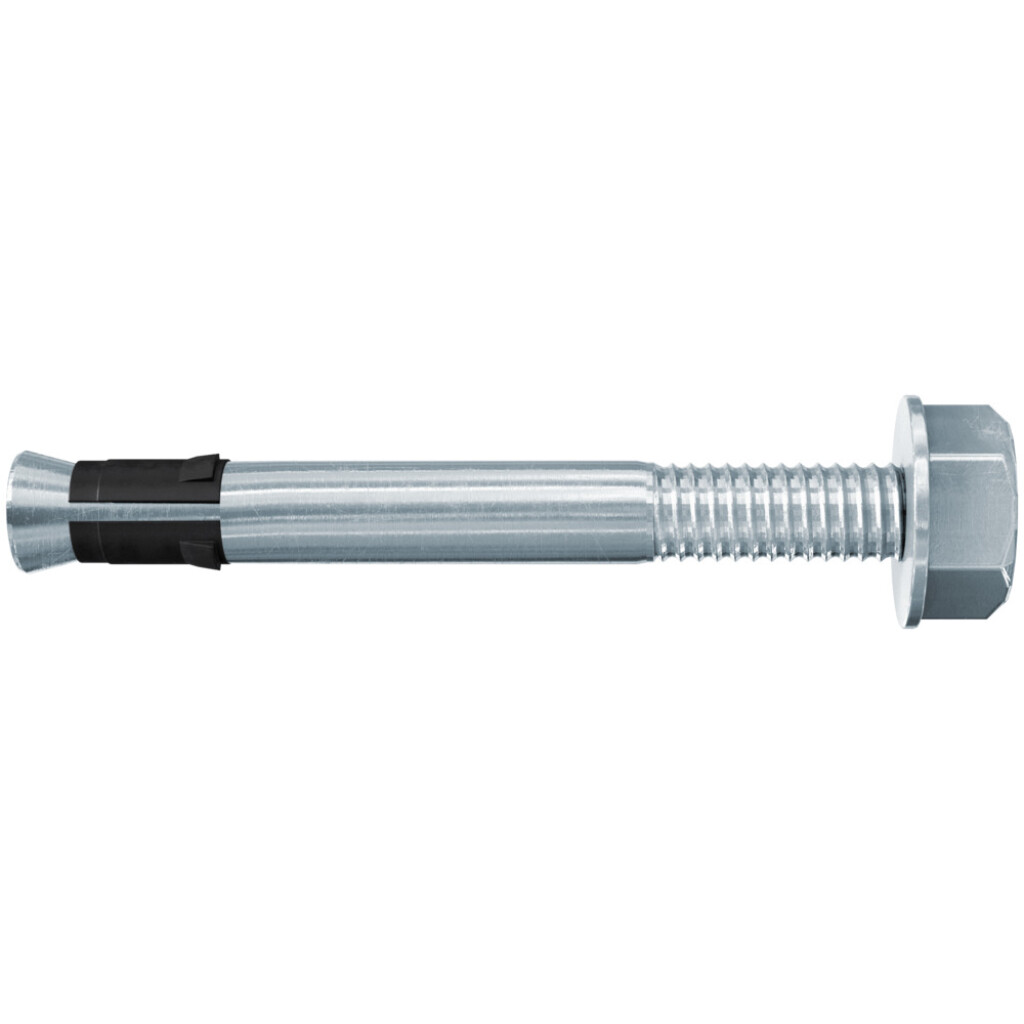

The fischer nail anchor FNA II 6 with thread and flange nut is made of zinc-plated steel. The FNA II is set in a time-saving manner in the push-through or pre-positioned installation with just a few taps of the hammer. The installed FNA II expands automatically under load. The cone is then pulled into the expansion clip and expands it against the hole wall. Above all, the fischer nail anchor FNA II with thread and flange nut is suitable for fixing metal clamps for conduits and pipes in internal areas.
Technical data
| Anchor length: | 51 |
|---|---|
| Depth of drilling hole: | 45 |
| Drill diameter: | 6 |
| EAN Nr.: | 4006209441145 |
| Manufacturer No. : | 044114 |
| Material: | Steel |
| Max. effective length: | 5 |
| Surface: | galvanised |
| Type: | FNA II 6 x 30 M8/5 |
| Wrench size (s): | 13 |
