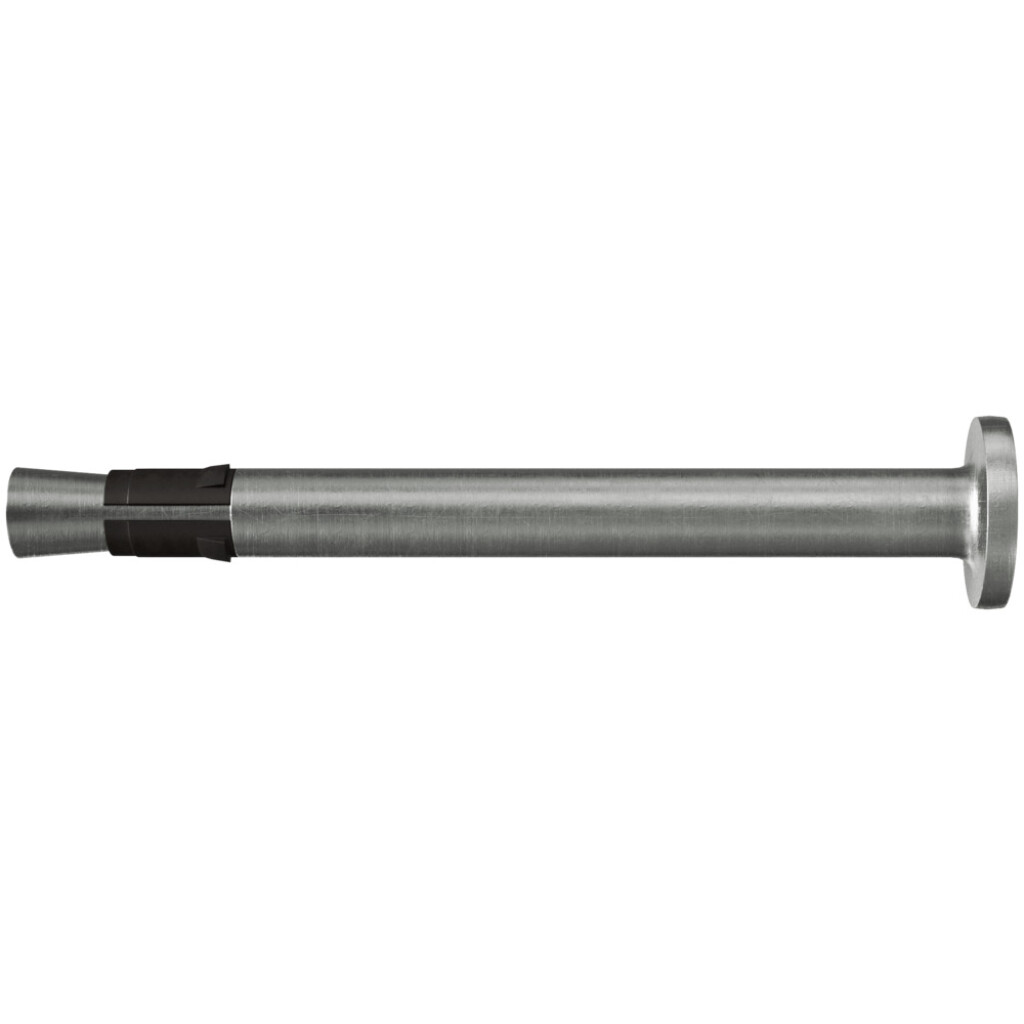

FISCHER Nail anchor FNA II 6x30/ 5 A4 No 44122
FISCHER
FISCHER Nail anchor FNA II 6x30/ 5 A4 No 44122
The fischer nail anchor FNA II 6 with nail head is made of stainless steel. The FNA II is set in a time-saving manner in the push-through installation with just a few taps of the hammer. The installed FNA II expands automatically under load. The cone is then pulled into the expansion clip and expands it against the hole wall. Above all, the fischer nail anchor FNA II 6 with nail head is suitable for fixing mounting rails and timber or sub-constructions in external areas.
Technical data
| Anchor length: | 40 |
|---|---|
| Depth of drilling hole: | 45 |
| Drill diameter: | 6 |
| EAN Nr.: | 4006209441220 |
| Manufacturer No. : | 044122 |
| Material: | Steel |
| Max. effective length: | 5 |
| Surface: | galvanised |
| Type: | FNA II 6 x 30/5 R |
