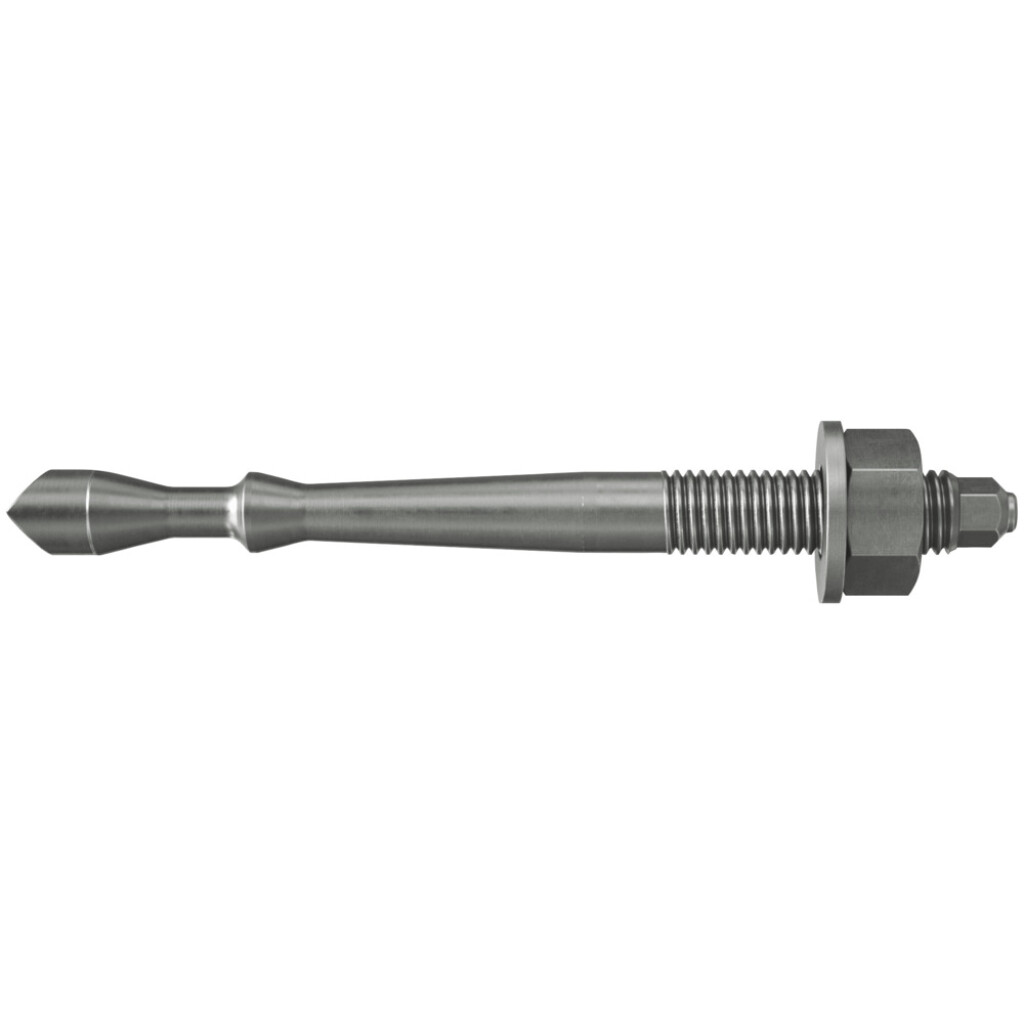

FISCHER Highbond threaded rod A4 FHB II-A S M 10x 60/40 no 97632
The fischer Highbond rod anchor FHB II-A S A4 is produced from stainless steel. The torque-controlled composite anchor can be processed with the Highbond special mortar FIS HB or the mortar cartridges FHB II-P and FHB II-PF HIGH SPEED. When tightening the hexagon nut, the anchor rod cones are pulled into the mortar shell, which expands against the drill hole wall. Using the fischer Highbond system FHB II means that, for example, façades, railings, and steel constructions are securely installed within external areas.
Technical data
| Anchorage depth: | 60 |
|---|---|
| Depth of drilling hole: | 75 |
| Drill diameter: | 10 |
| EAN Nr.: | 4006209976326 |
| Manufacturer No. : | 097632 |
| Material: | stainless steel |
| Max. effective length: | 40 |
| Surface: | plain |
| Type: | FHB II-A S M10 x 60/40 R |
