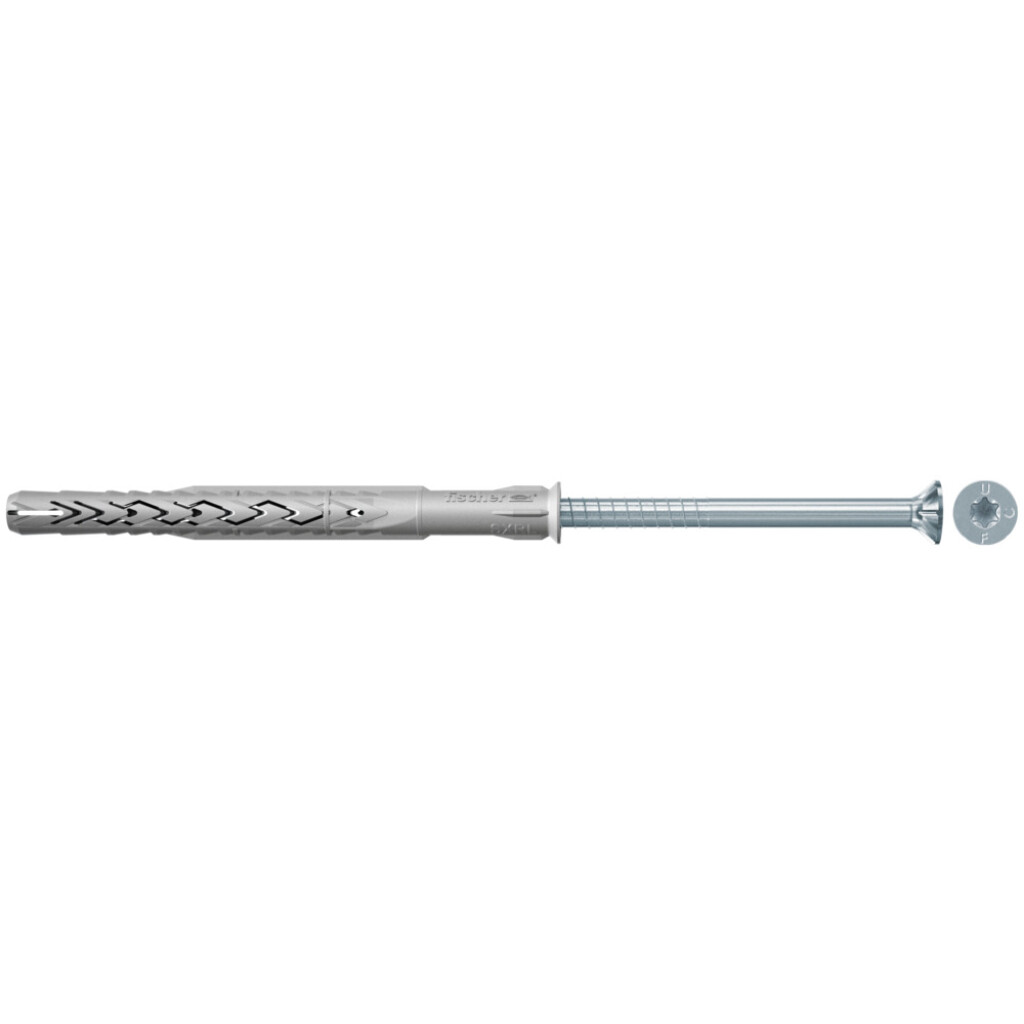

FISCHER Frame fixing SXRL 14 x 120 T No 530922
FISCHER
FISCHER Frame fixing SXRL 14 x 120 T No 530922
The fischer frame fixing SXRL-T is approved along with the fischer countersunk head screw with TX50 drive for multiple fixings of non-load-bearing systems in masonry, concrete, and aerated concrete. The two expansion zones in the fixing induce forces equally into perforated masonry, these combine to form a long expansion element in aerated concrete and solid building material. The frame fixing with the safety screw made out of zinc-plated steel is suitable for fixings of façade, ceiling and roof substructures made of wood.
Technical data
| Anchor length: | 120 |
|---|---|
| Colour: | grey |
| Drill diameter: | 14 |
| Drive type: | Torx |
| EAN Nr.: | 4048962206432 |
| Head form: | Countersunk head |
| Manufacturer No. : | 530922 |
| Material: | Steel |
| Min. drill hole depth: | 135 |
| Surface: | galvanised |
| Type: | SXRL 14 x 120 T |
| for torx: | TX 50 |
