FISCHER Frame fixing SXR 10 x 260 F US no 46338

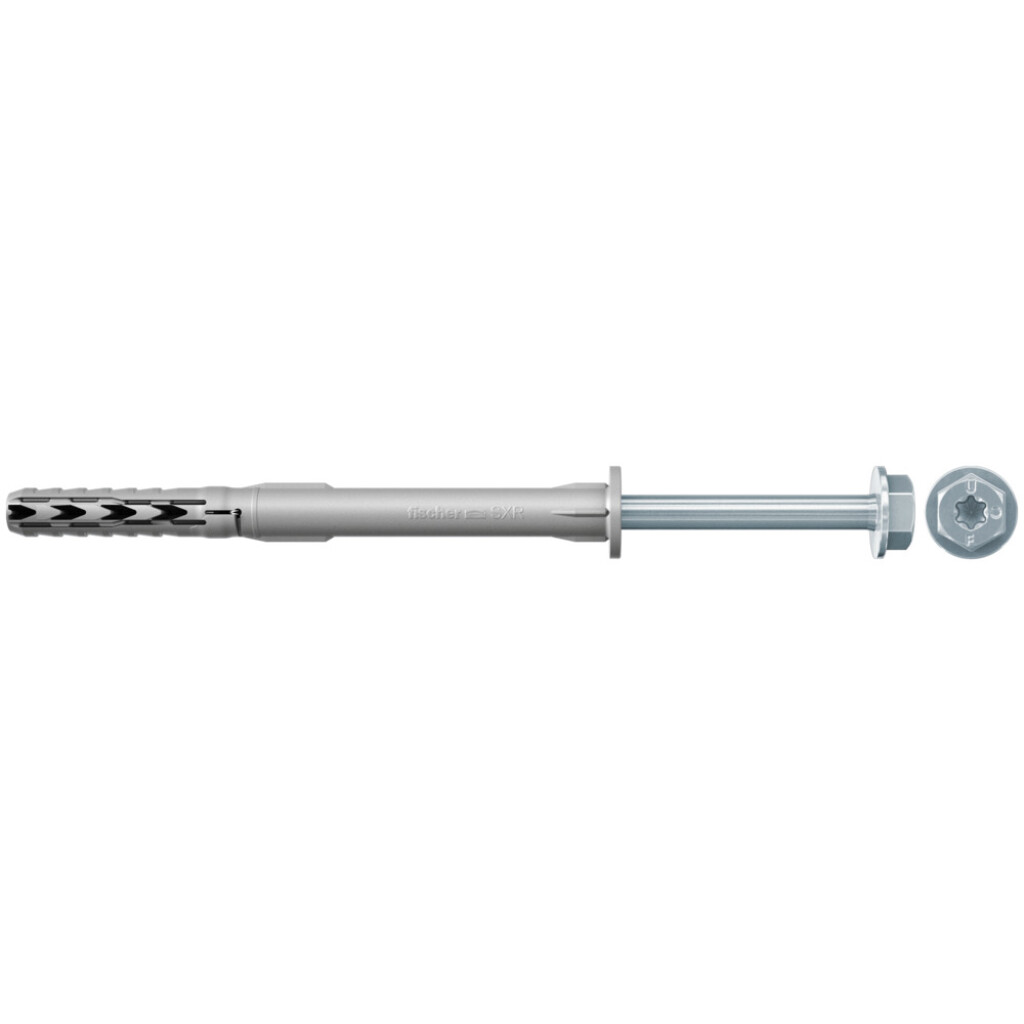

The fischer frame fixing SXR-FUS is a plug made of high-quality nylon along with the pre-mounted fischer hexagonal screw and moulded washer. Due to the special plug geometry, the SXR can be used in solid and hollow building materials. Due to the low anchorage depth of only 50 mm, the frame fixing can be handled in an especially cost-effective manner for multiple fixing of non-load-bearing systems. The fischer frame fixing SXR-FUS is particularly recommended with the hexagonal screw and moulded washer for fixing metal constructions.
Technical data
| Anchorage depth: | 50 |
|---|---|
| Anchor length: | 260 |
| Clamping strength: | 210 |
| Drill diameter: | 10 |
| Drive type: | Torx |
| EAN Nr.: | 4006209463383 |
| Head form: | hexagon head |
| Manufacturer No. : | 046338 |
| Material: | Steel |
| Min. drill hole depth: | 270 |
| Surface: | galvanised |
| Type: | SXR 10 x 260 FUS |
| for torx: | T40 / SW13 |
