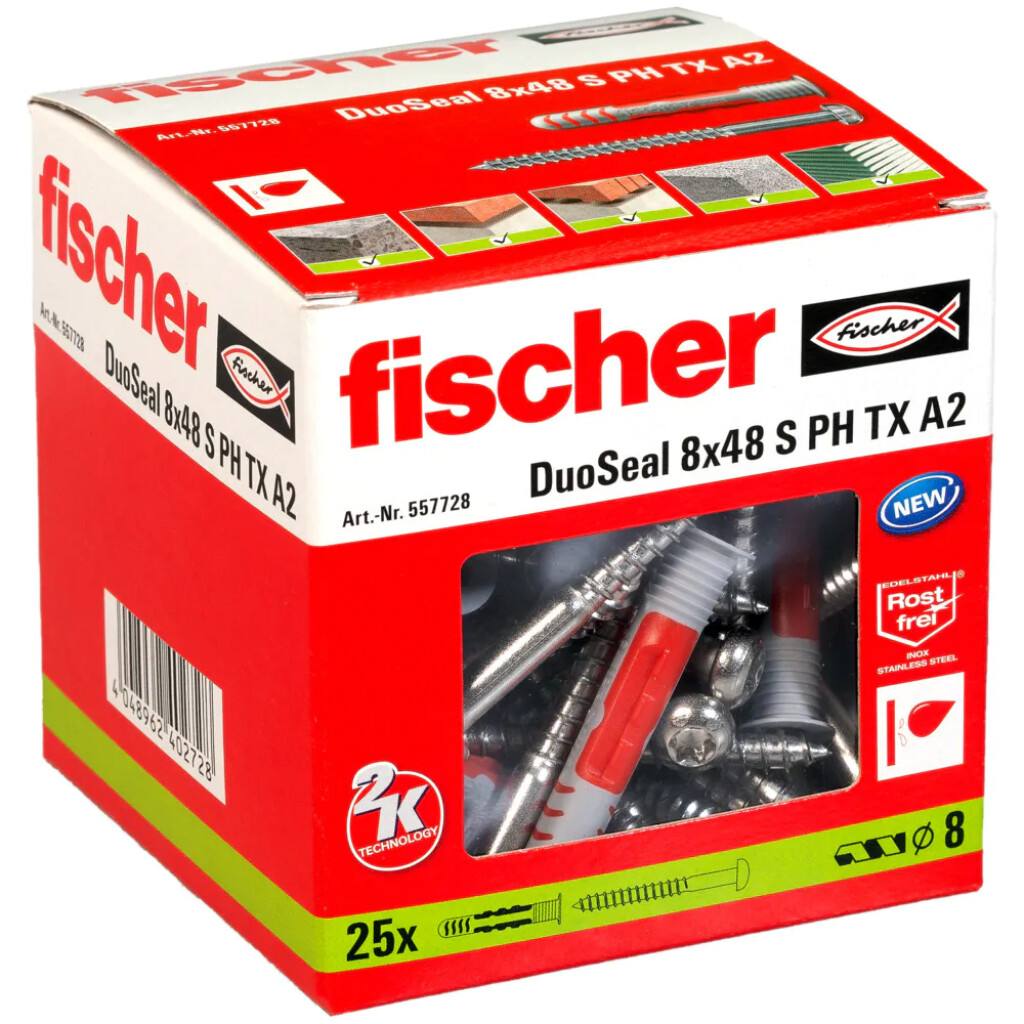

FISCHER DUOSeal 8 X 48 S PH TX A2 no. 557728
FISCHER DUOSeal 8 X 48 S PH TX A2 no. 557728

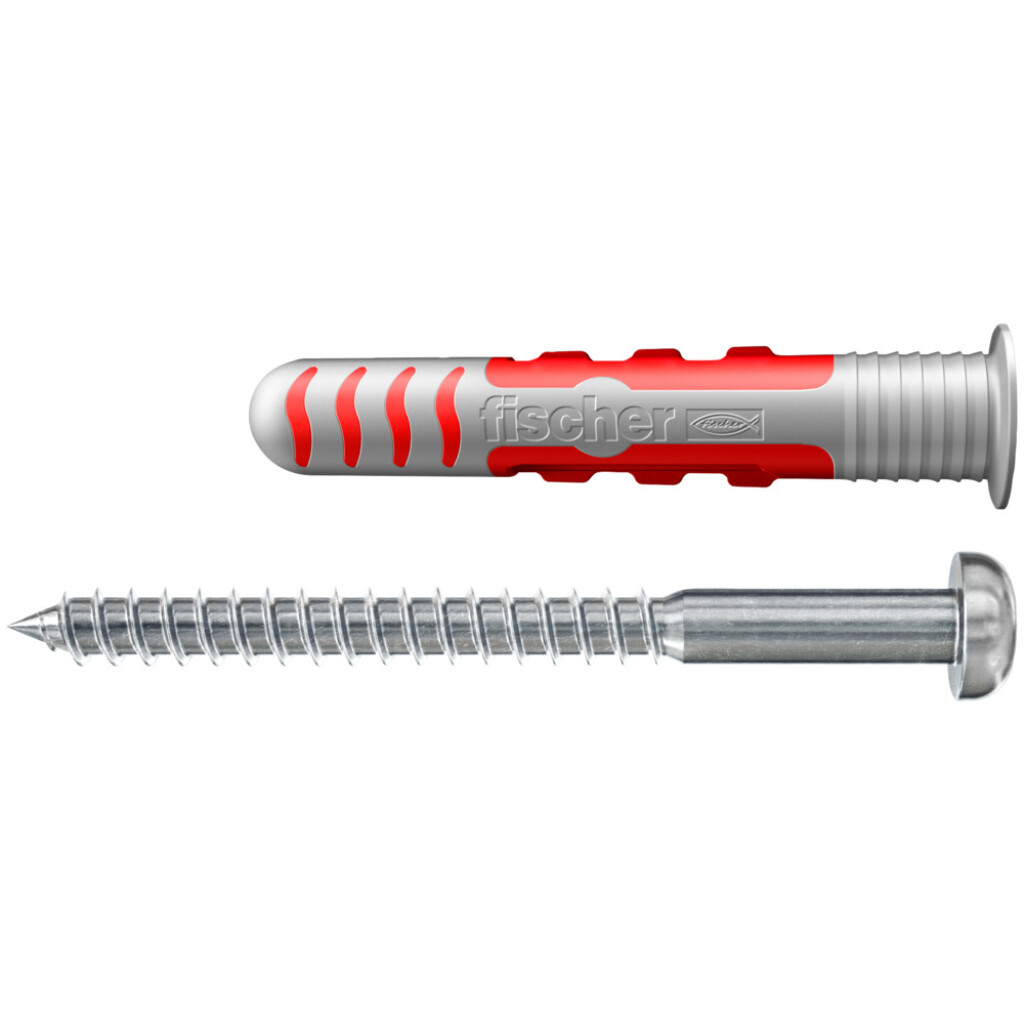

The fischer DuoSeal is a 2-component plug which seals the drill hole in wet areas without any additional sealing compound. The nylon plug with the enclosed screw has been independently tested by the Testing and Certification Institute of the Säure Fliesner Vereinigung e. V. The watertightness is confirmed in accordance with ETAG 022 and DIN 18534 up to the water exposure class W3-I. Taking into account the national and international sealing standards for wet areas, the DuoSeal in combination with the enclosed screw is suitable for applications in commercial, private and public wet areas which are frequently exposed to splash water and temporarily accumulated water. In any case, please take note of the general national regulations on the use of plugs in wet areas.
Technical data
| Anchorage depth: | 48 |
|---|---|
| Anchor length: | 48 |
| Depth of drilling hole: | 75 |
| Drill diameter: | 8 |
| EAN Nr.: | 4048962402728 |
| Manufacturer No. : | 557728 |
| Material: | Plastic |
| Min. drill hole depth: | 75 |
| Screw for anchor: | 6 x 70 |
| Type: | DuoSeal 8 x 48 S PH TX A2 |
Graduated prices
| Quantity | Price |
|---|---|
| To 99 | €105.40 / 100 pcs |
| To 499 | €84.32 / 100 pcs |
| To 999 | €79.05 / 100 pcs |
| To 2999 | €73.78 / 100 pcs |
| To 4999 | €68.51 / 100 pcs |
| From 5000 | €63.24 / 100 pcs |
Further information
TBD
Description
Art.-No.
Availability
158197
available
€105.40
/ 100 pcs
Content:
1 pcs
(€105.40* / 100 pcs)
