DIN 966 AM 3 x 12 4.8
DIN 966 AM 3 x 12 4.8

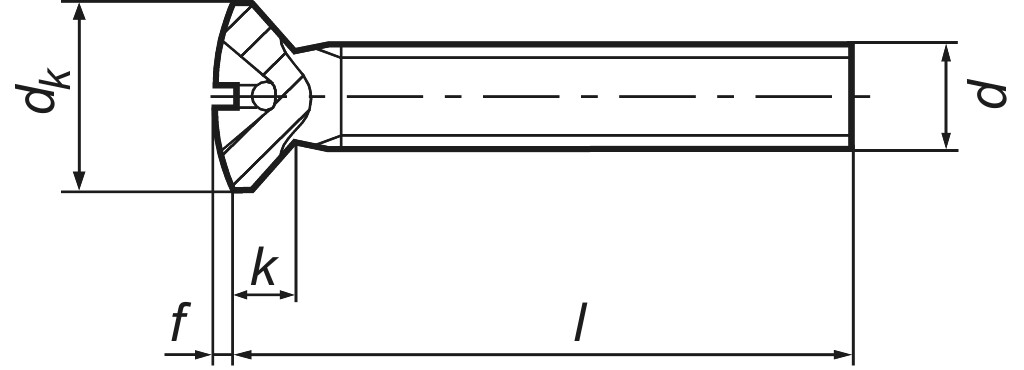

DIN 966 Cross recessed raised countersunk head screws
Technical data
| Cross recess size: | 1 |
|---|---|
| Drive type: | Cross slot |
| Head diameter (dk): | 5,6 |
| Head form: | Slotted raised countersunk head |
| Head heigth (k): | 1,65 |
| Length (l): | 12 |
| Lens point heigth (f): | 0.75 |
| Material: | Steel |
| Quality: | 4.8 |
| Surface: | plain |
| Thread (d): | M 3 |
Further information
TBD
