DIN 963 AM 10 x 90 4.8
DIN 963 AM 10 x 90 4.8
DIN 963 Slotted countersunk (flat) head screws

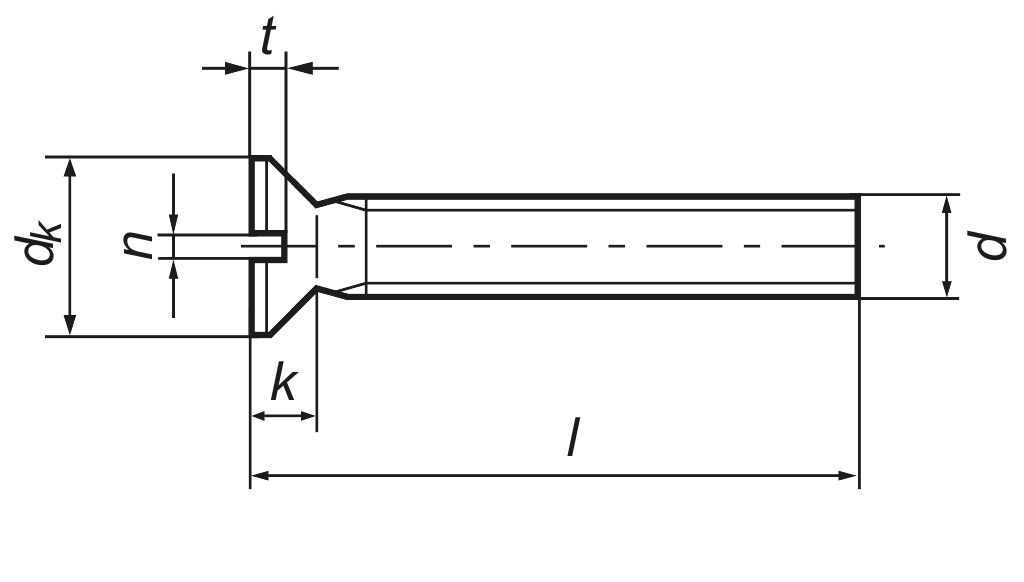

Technical data
| Drive type: | Slot |
|---|---|
| Head diameter (dk): | 18 |
| Head heigth (k): | 5 |
| Length (l): | 90 |
| Material: | Steel |
| Quality: | 4.8 |
| Slot depth (t): | 2 |
| Slot width: | 2.5 |
| Slot width (n): | 2.5 |
| Surface: | plain |
| Thread (d): | M 10 |
Graduated prices
| Quantity | Price |
|---|---|
| To 499 | €98.48 / 100 pcs |
| To 999 | €92.32 / 100 pcs |
| To 2999 | €86.17 / 100 pcs |
| To 4999 | €80.01 / 100 pcs |
| From 5000 | €73.86 / 100 pcs |
