DIN 923 M 3 x 2 5.8
DIN 923 M 3 x 2 5.8

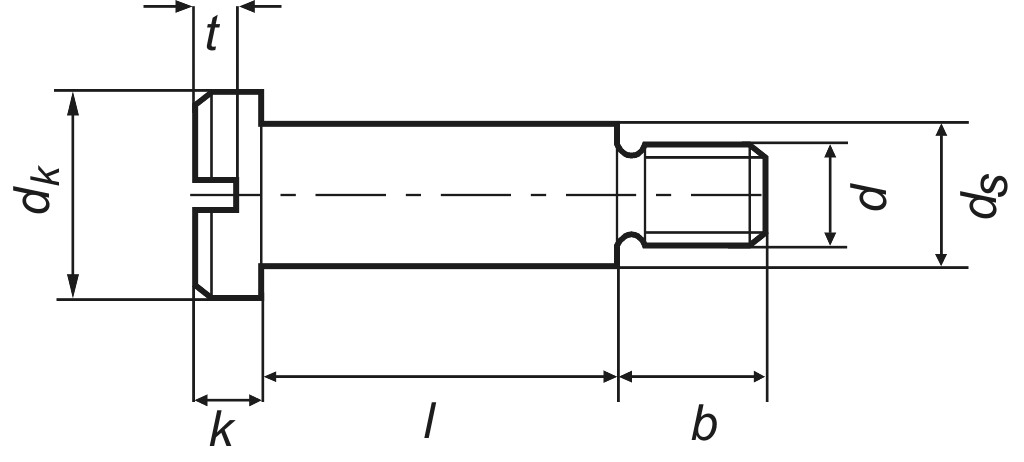

DIN 923 Slotted pan head screws with shoulder and rudiment
Technical data
| Drive type: | Slot |
|---|---|
| Head diameter (dk): | 7 |
| Head form: | flathead |
| Head heigth (k): | 1,8 |
| Length (l): | 2 |
| Material: | Steel |
| Quality: | 5.8 |
| Slot depth (t): | 0.45 |
| Slot width: | 0.8 |
| Slot width (n): | 0.8 |
| Socket diameter (ds): | 4 |
| Surface: | plain |
| Thread (d): | M 3 |
| Thread length: | 4,5 |
| Thread length (b): | 4,5 |
Graduated prices
| Quantity | Price |
|---|---|
| To 499 | €33.89 / 100 pcs |
| To 999 | €31.78 / 100 pcs |
| To 2999 | €29.66 / 100 pcs |
| To 4999 | €27.54 / 100 pcs |
| From 5000 | €25.42 / 100 pcs |
Further information
TBD
Description
Art.-No.
Availability
030404
available on request
€33.89
/ 100 pcs
Content:
1 pcs
(€33.89* / 100 pcs)
