DIN 912 / ISO 4762 M 6 x 20 A2
DIN 912 / ISO 4762 M 6 x 20 A2
DIN 912 Hexagon socket head cap screws with socket

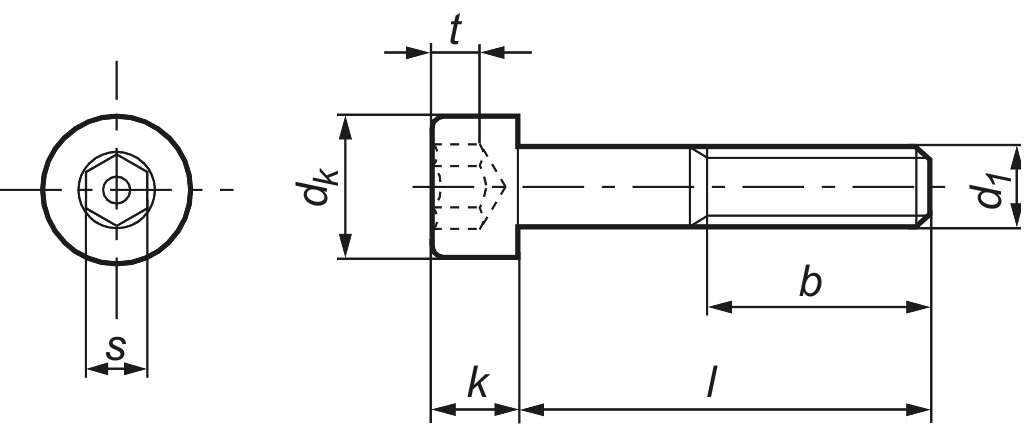

Technical data
| Depth (t): | 3 |
|---|---|
| Drive type: | Socket |
| Head diameter (dk): | 9,78 - 10,22 |
| Head heigth (k): | 6 |
| Length (l): | 20 |
| Material: | A2 |
| Quality: | - |
| Surface: | - |
| Thread (d): | M 6 |
| Thread length (b): | 17 |
| Wrench size (s): | 5 |
Further information
TBD
