DIN 610 M 24k6 x 60 8.8
DIN 610 M 24k6 x 60 8.8

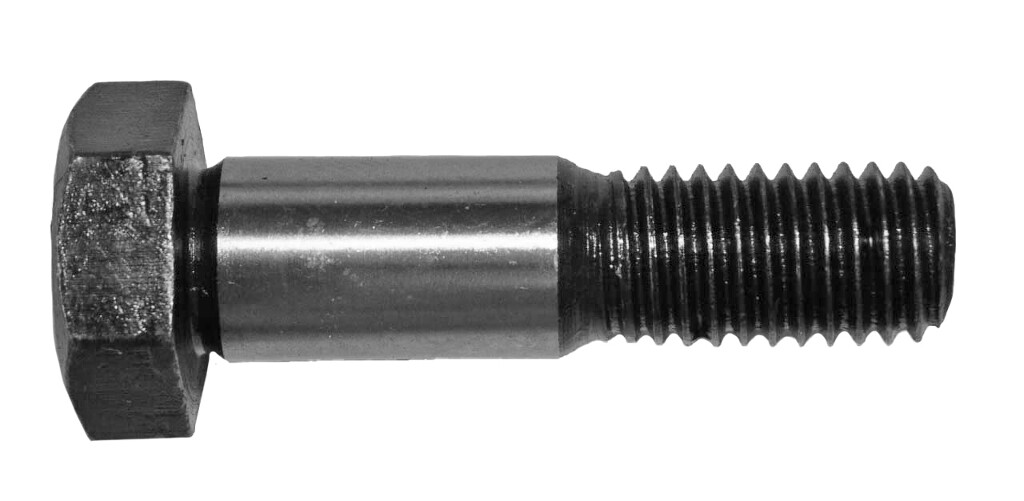

DIN 610 Hexagon fit bolts with short threaded portion 8.8

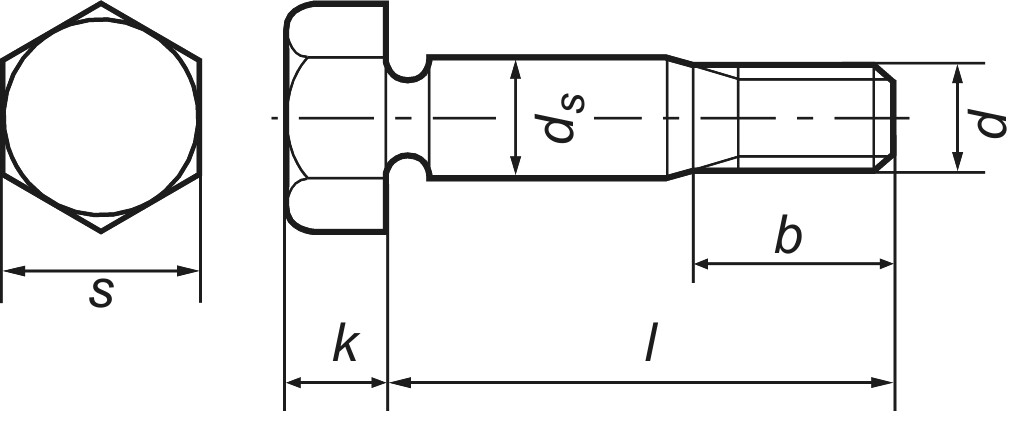

Technical data
| Drive type: | Hexagon |
|---|---|
| Head form: | hexagon head |
| Head heigth (k): | 15 |
| Length (l): | 60 |
| Material: | Steel |
| Quality: | 8.8 |
| Shaft diameter (ds): | 25 |
| Shaft tolerance: | k6 |
| Surface: | plain |
| Thread (d): | M 24 |
| Thread length: | 28,5 |
| Thread length (b): | 28,5 |
| Wrench size (s): | 36 |
