DIN 609 M 16 k6 x 40 8.8
DIN 609 M 16 k6 x 40 8.8

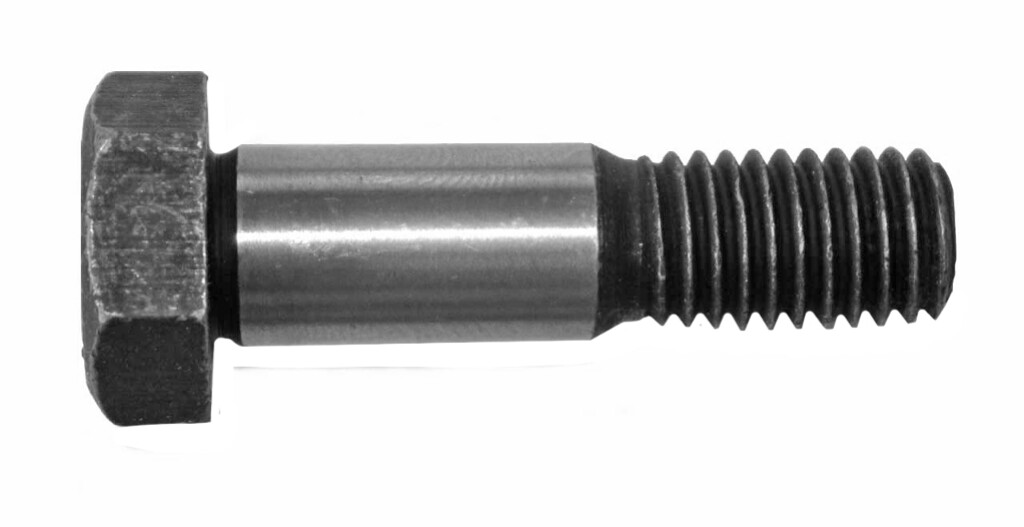

DIN 609 Hexagon fit bolts with long threaded portion 8.8

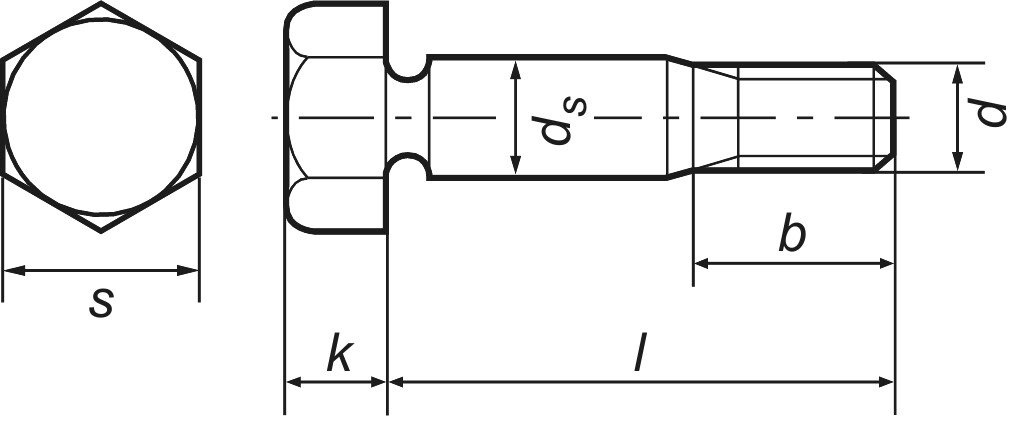

Technical data
| Drive type: | Hexagon |
|---|---|
| Head form: | hexagon head |
| Head heigth (k): | 10 |
| Length (l): | 40 |
| Material: | Steel |
| Quality: | 8.8 |
| Shaft diameter (ds): | 17 |
| Shaft tolerance: | k6 |
| Surface: | plain |
| Thread (d): | M 16 |
| Thread length: | 25 |
| Thread length (b): | 25 |
| Wrench size (s): | 24 |
Graduated prices
| Quantity | Price |
|---|---|
| To 99 | €974.11 / 100 pcs |
| To 199 | €913.23 / 100 pcs |
| To 299 | €852.35 / 100 pcs |
| To 499 | €791.47 / 100 pcs |
| From 500 | €730.58 / 100 pcs |
Further information
TBD
Description
Art.-No.
Availability
070729
available
€974.11
/ 100 pcs
Content:
1 pcs
(€974.11* / 100 pcs)
