DIN 604 M 16 x 45 with nut 4.6
DIN 604 M 16 x 45 with nut 4.6

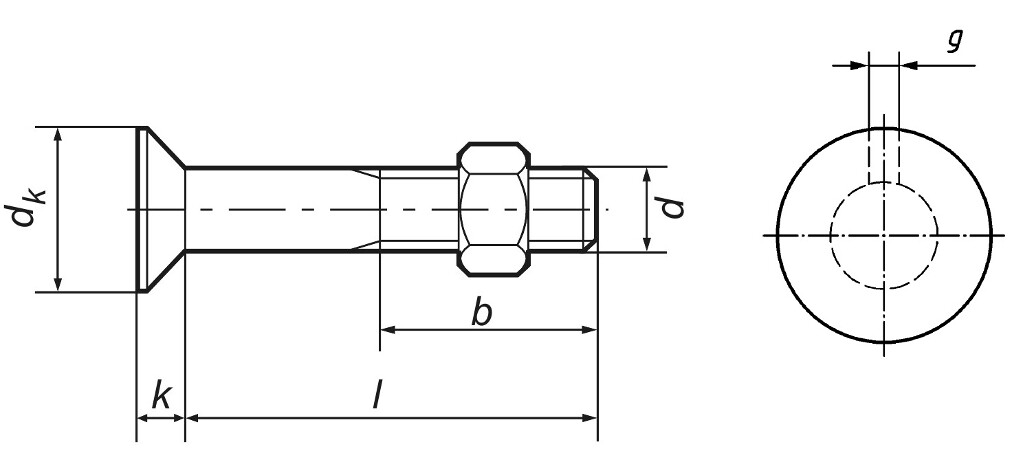

DIN 604 Countersunk bolt with nose and hexagon nuts
Technical data
| Head diameter (dk): | 32,8 |
|---|---|
| Head form: | Countersunk head with nose |
| Head heigth (k): | 9 |
| Length (l): | 45 |
| Material: | Steel |
| Quality: | 4.6 |
| Surface: | plain |
| Thread (d): | M 16 |
| Thread length: | 26 |
| Thread length (b): | 26 |
| Width of nose (g): | 3,72-4,2 |
Further information
TBD
