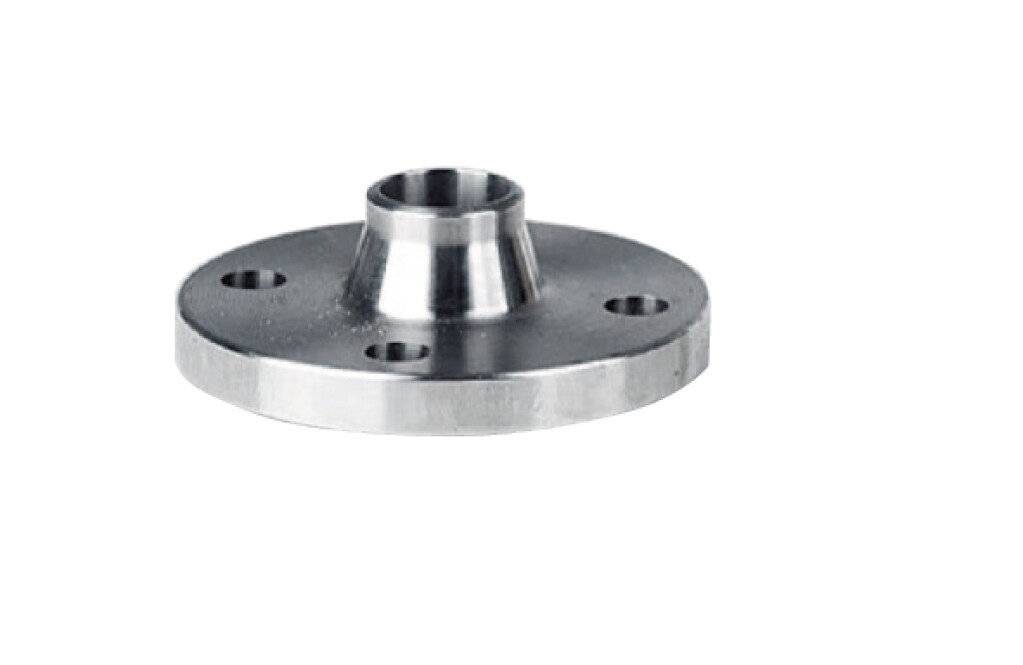

DIN 2637 E DN 15/ 21,3 C22.8 welding neck flange, PN 100
DIN 2637 E DN 15/ 21,3 C22.8 welding neck flange, PN 100
DIN 2637 Welding neck flange PN 100 C22.8

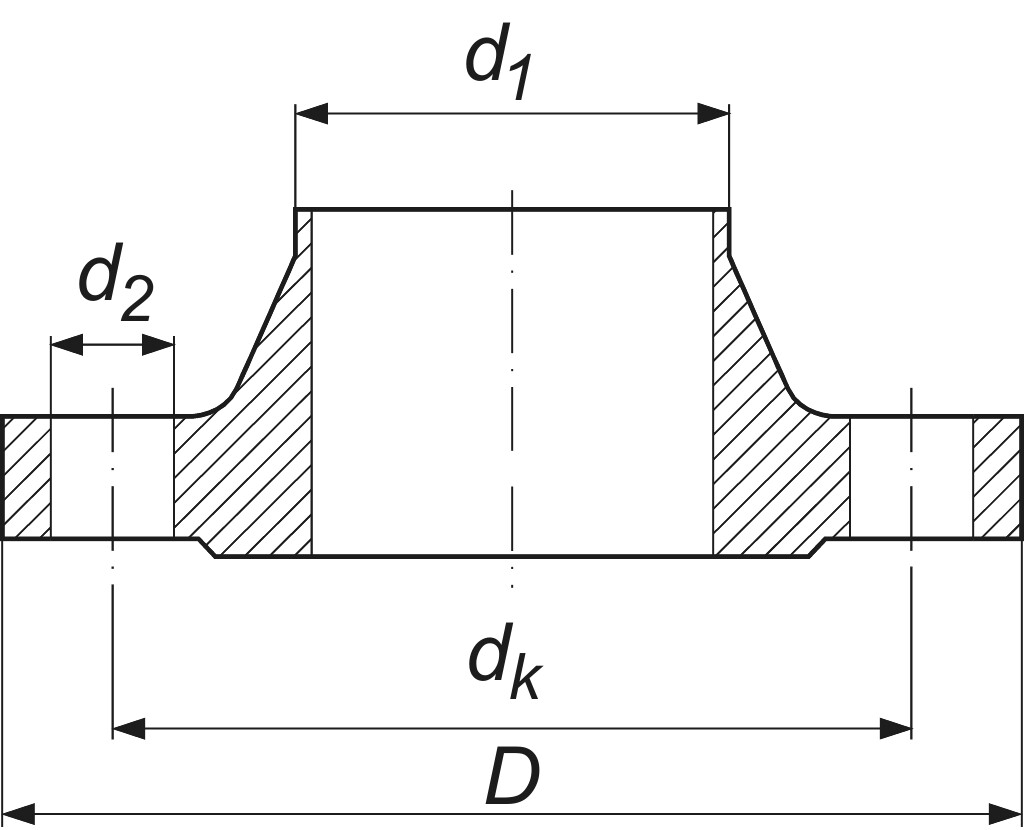

Technical data
| Count of hole: | 4 |
|---|---|
| Hole circle (dk): | 75 |
| Hole diameter (d2): | 14 |
| Material: | C 22.8 |
| Nominal Pressure ( PN ): | 100 |
| Nominal width: | 15 |
| Nominal width (NW): | 15 |
| Outside diameter (D): | 105 |
| Sheet thickness (s): | 20 |
| Tube external dimension (d1): | 21.3 |
Graduated prices
| Quantity | Price |
|---|---|
| To 9 | €264.44 / 1 pcs |
| To 29 | €235.06 / 1 pcs |
| From 30 | €205.67 / 1 pcs |
Further information
TBD
Description
Art.-No.
Availability
206502
available on request
€264.44
/ 1 pcs
Content:
1 pcs
