DIN 1480 AM 24 3.6 with hook and eyelet, raw
DIN 1480 AM 24 3.6 with hook and eyelet, raw

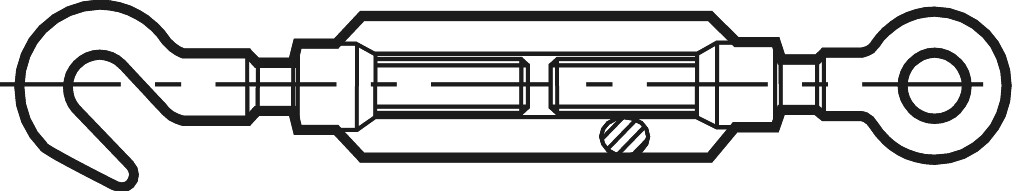

DIN 1480 Turnbuckles with hook and eyelets

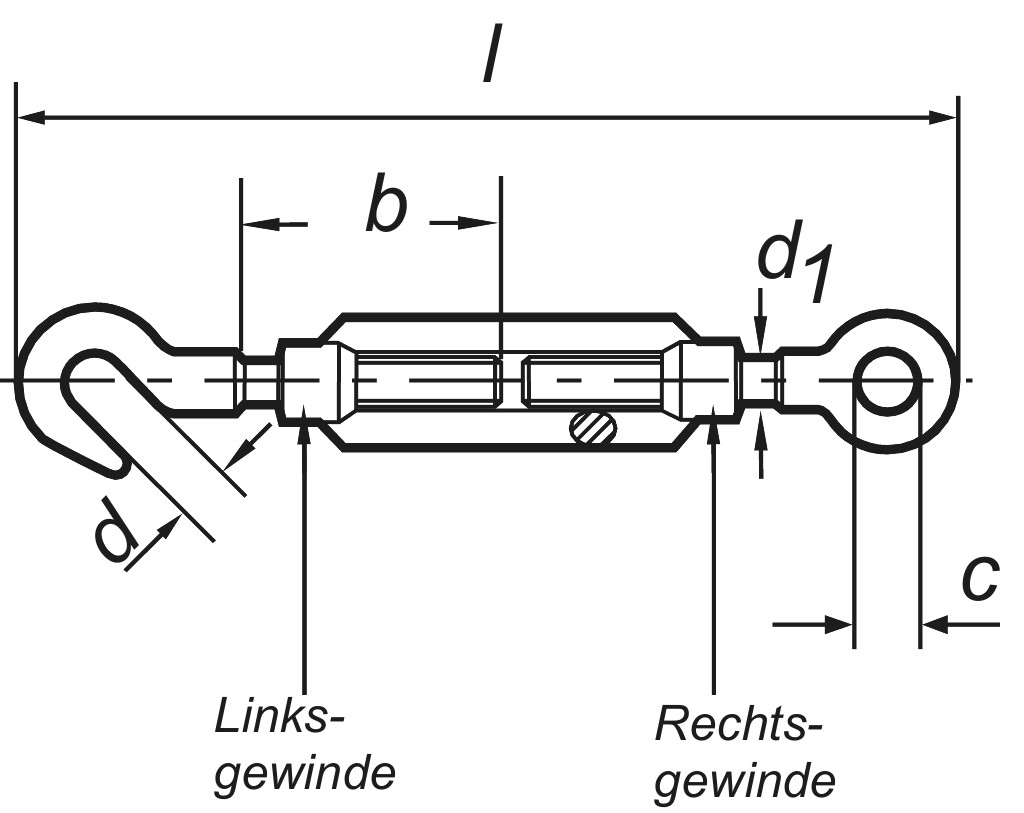

Technical data
| Clamping range: | 447 - 617 |
|---|---|
| Eyelet diameter (c): | 27 |
| Hook opening (d): | 26 |
| Length (l): | 255 |
| Material: | Steel |
| Quality: | 3.6 |
| Surface: | plain |
| Thread (d): | M 24 |
| Thread length (b): | 150 |
| Width (e): | 60 |
Further information
TBD
